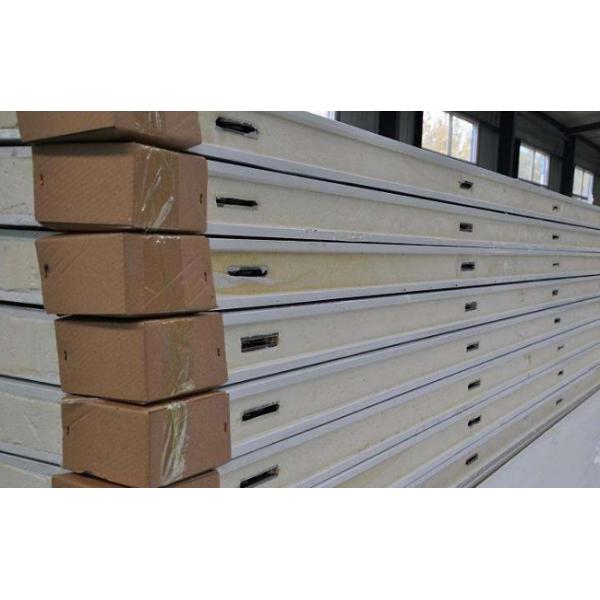

KUB cold room manufacturers PU sandwich panel for cold room

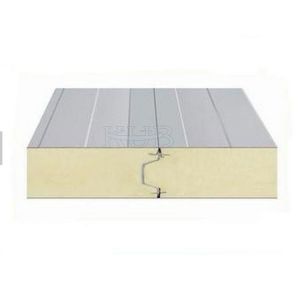

construction Cold Room Insulation Panels
To build a cold room, and still have some questions as follows:
1. Store for fish, fruit, vegetable,..., but do not know the cold
room size.
2. Want to see the design and graphic model of cold room.
3. Don't know how to choose the condensing unit and unit cooler.
4. Don't know how many cargos can be stored in the cold room.
5. How to deliver the goods to my warehouse.
6. .......
| USER QUESTIONNAIRE |
In order to better provide accurate quotation for you,
please reply to the following questions as much as possible |
|
| | | | | | | | | | |
| | | | | | | | | | |
| SN | Basic Questions | Your answers |
| 1 | What's kind of products is gonna store? Meat,vegetables,soft
drinks,fruits or other goods | |
| 2 | The outside size Length *Wideth*Height of your cold room/freezer
room. | |
| 3 | Required temperature inside the room? XX ° C ~ XX ° C | |
| 4 | How many hours do you expect to pull down temperature? | |
| 5 | Condenser type, air cooled, water cooled or evaporative condenser? | |
| 6 | Voltage & Phases & Frequency. The same with China 380V-400V/3/50hz
? 420V-440V 3/60hz | |
| 7 | What kind of refrigerant ? Freon R22,R404a,R134a or other
refrigerant? | |
| 8 | What's the input temperature of products? | |
| 9 | Purpose(quick-freezing/Precooling/Storage/Fresh-keeping) storage | |
| 10 | Project location | |
| 11 | The thickness of cold storage board ? 75mm,100mm ,120mm ,150mm
,200mm | |
| 12 | The thickness of the galvanized steel
?0.326mm,0.426mm,0.476mm,0,525mm | |
| 13 | Door(s) – hinged door, sliding door,single door,double door?
Quantity ? | |
| 14 | Will personnel be working inside the cold room? | |
| 15 | Will the fork-lift truck get in and out of the room? | |
| 16 | The room have pillars? Quantity ? | |
| 17 | What’s the ambient temperature (℃) | |
Application:
Food (meat, vegetable, fruit, dairy, drink), Medicine, Chemical,
Flowers,Electronics
| Thickness of cold storage panel | Application temperature |
| 50mm | Temperature 5°C or above |
| 75mm | Temperature -5°C or above |
| 100mm | Temperature -5'C~-25°C or above |
| 150mm | Temperature -18'C~-45°C or above |
| 200mm | Temperature -55°C or above |
Features of cold room ( cold storage, freezer room,cooling room ) :
(1) Temperature for chicken and fish: -18ºC for storage, -30ºC for quick freezing
Temperature for vegetable and fruit:0- 5ºC
(2) Size: We can make the cold room by your requirements.
| Volume Classification Table: |
| Classification of cold room | Small | Middle | Large |
| Volume Range | <500m3 | 500~10000m3 | >10000m3 |
(3)excellent quality ,dependable performance, energy saving design
and environmental.
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture,
food, restaurant, chemical industry; we can undertake designs according to customer's
requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any
product quality problems, we will return processing, and is
responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced
enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology
to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled
condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water
defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as
KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful
appearance.
They are widely used in cold storage, hotels,industrial
processes,medical industries, chemical industries,refrigerated
trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the
fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile,
food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations
such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey
solutions.
Packaging & Shipping
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and
excellent location, a sound management system and modern means of
communication and multi-faceted services. We insist on everything
from the actual needs of customers, the implementation of the
entire transport monitoring service is available 24 hours a day.
These are the goods on time, safe, efficient destination to provide
effective protection.
